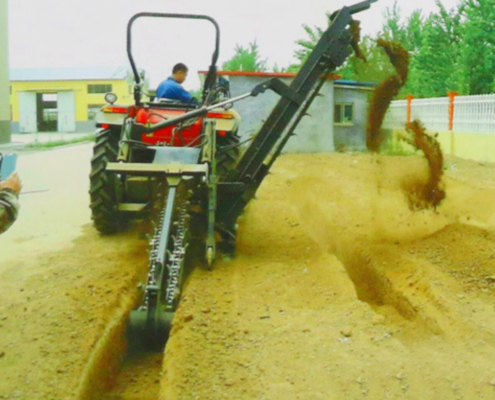

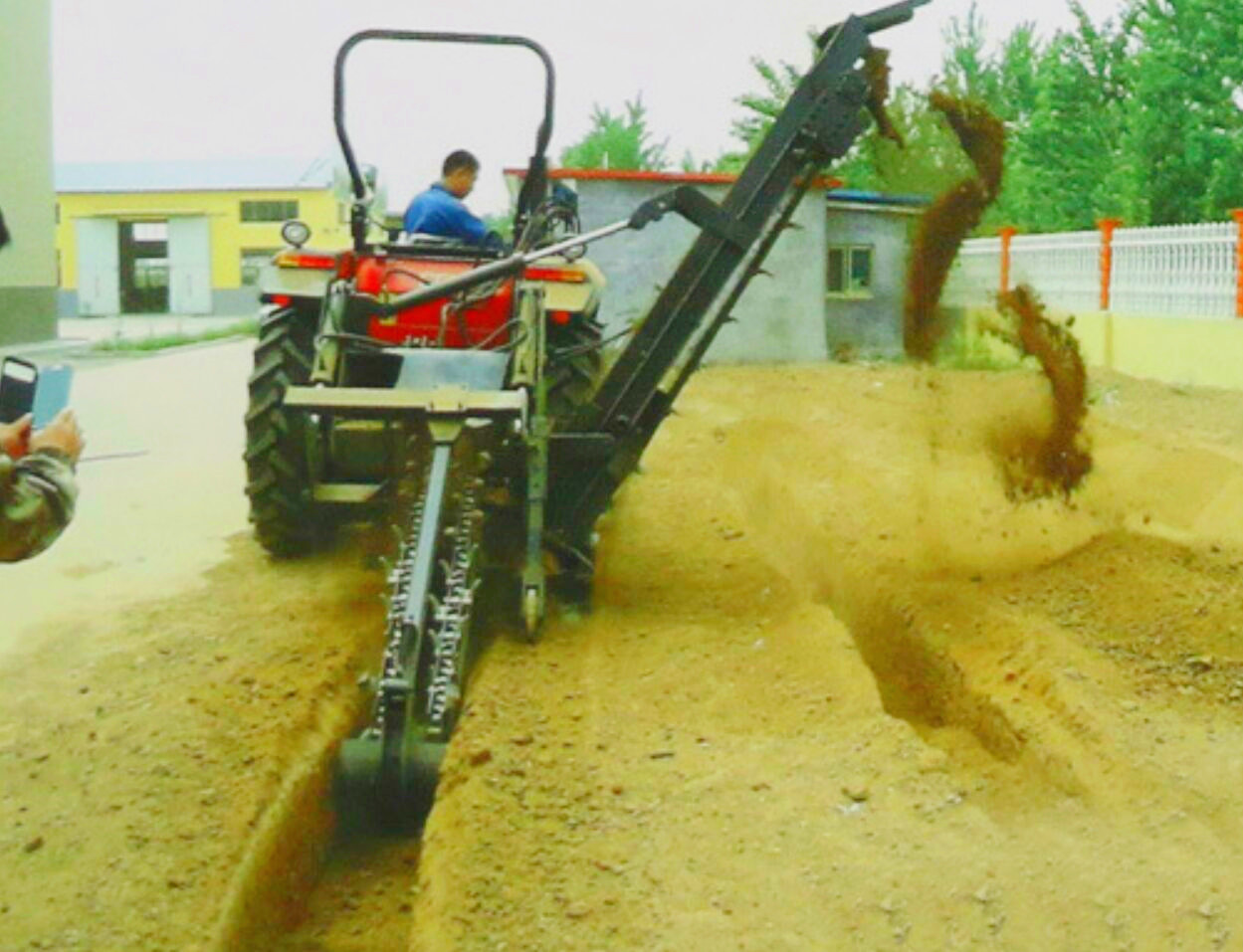

TR120 Trencher
A trencher is a specialized piece of construction and agricultural equipment designed for one primary task: digging narrow, precise trenches in the ground. It is engineered for efficiency and accuracy, significantly outperforming general-purpose excavators or manual labor in linear earthmoving.
Trenchers utilize a heavy-duty, continuous digging mechanism, typically a tracked chain with digging teeth or a rotating wheel with buckets, to cut into the soil and convey it to the side. This creates a clean, uniform ditch with consistent depth and width. They are indispensable for installing subsurface utilities like irrigation pipes, drainage tiles, electrical conduits, and fiber optic cables.
Main feature
A trencher is a specialized piece of construction and agricultural equipment designed for one primary task: digging narrow, precise trenches in the ground. It is engineered for efficiency and accuracy, significantly outperforming general-purpose excavators or manual labor in linear earthmoving.
Trenchers utilize a heavy-duty, continuous digging mechanism, typically a tracked chain with digging teeth or a rotating wheel with buckets, to cut into the soil and convey it to the side. This creates a clean, uniform ditch with consistent depth and width. They are indispensable for installing subsurface utilities like irrigation pipes, drainage tiles, electrical conduits, and fiber optic cables.
Specification
| Model | TR120 |
| Type | Chain type |
| Linkage | tractor 3-point link |
| Working width (cm) | 12 |
| Working depth (cm) | 100 |
| No.of blade (pcs) | 46 |
| Blade material | Alloy steel |
| Max unloading height (cm) | 120 |
| Matched power (hp) | 50~80 |
| Tractor request | Low speed / Creeper gear |
| Multi-way valve | 3-in / 3-out |
| Packing size (LxWxH)(mm) | 2260x1910x1720 |
