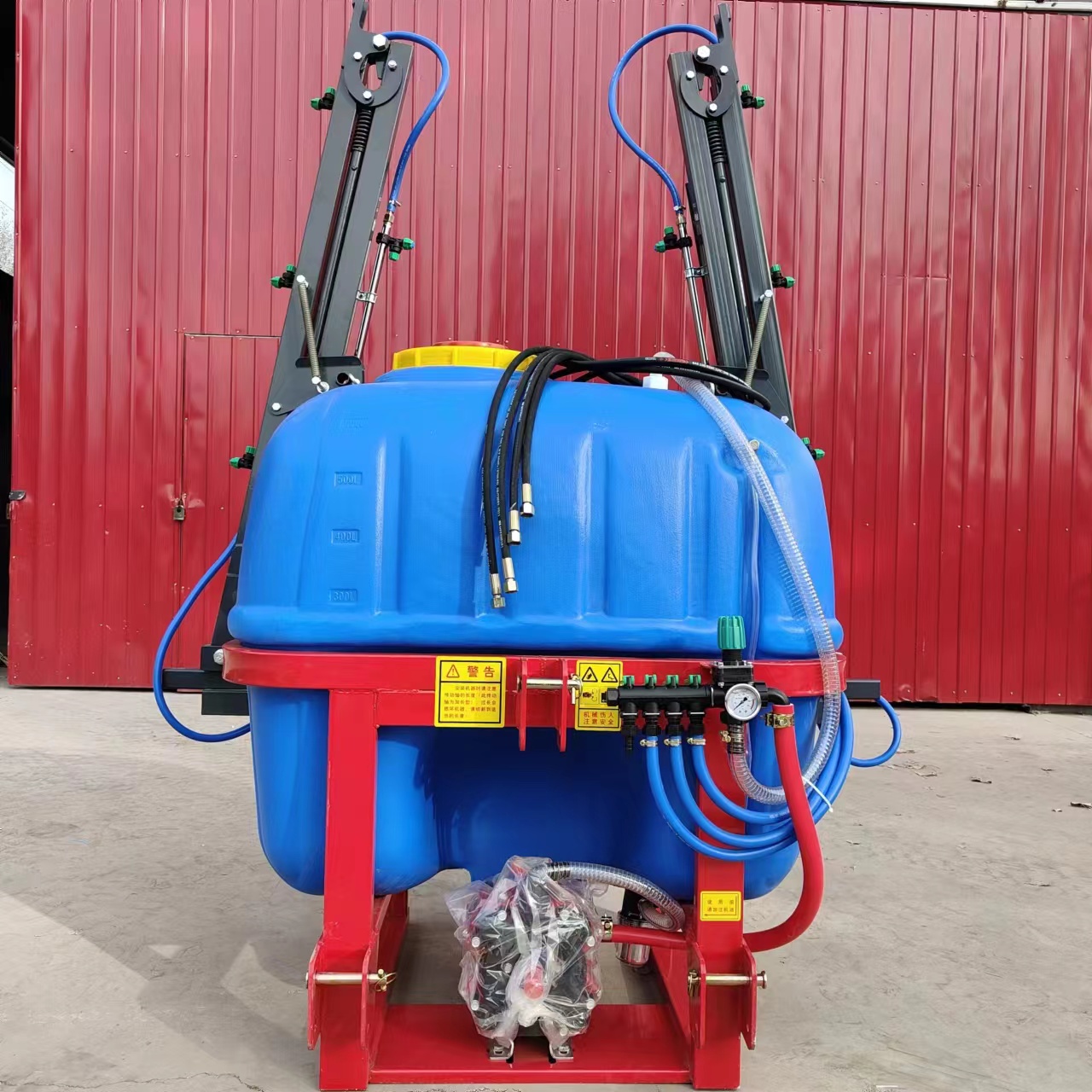

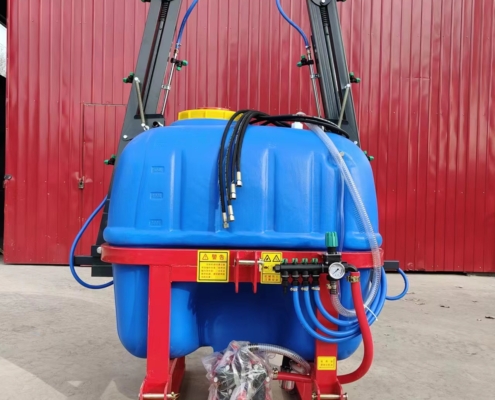

TS600-8 Sprayer
The spray is mainly used for spraying crops on large plains. It is mounted on the rear of the tractor. The PTO transmission shaft is connected to the tractor and the spray pressure pump.Under the action of the pressure pump, the liquid medicine is sprayed out through the nozzle.
Introduction
Three cylinder and four cylinder diaphragm pumps can be selected for different spraying amplitudes,and the spraying pressure can be freely selected.
The host is equipped with a splitter (made of plastic or aluminum) that can flexibly control the spraying work according to different crop conditions.
The heavy-duty folding spray bar is equipped with a hydraulic cylinder that can flexibly control the folding of 8/10/12 meters, and the spray width can be selected.
Specification
| Model | TS600-8 |
| Water tank (L) | 600 |
| Spraying width (m) | 8 |
| No.of nozzle | 16 |
| Matched power (hp) | 50 |
| Working pressure (Mpa) | 0.8~1.0 |
| Pump | 2000 mm |
| Rated flow (L/min) | 80~100 |
| Nozzle brand | Lechler |
